Filtration Package #6

Filtration Package #6

Regular price
$0.00
Sale price
$0.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

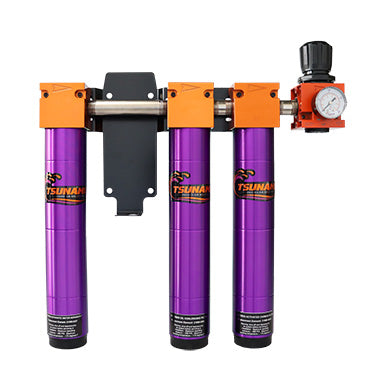

Filtration package #6 includes: (1) Water separator, (1) Oil coalescing filter, (1) Activated carbon filter, (1) Regulator and a mounting bracket.

Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Tsunami Water Separator removes water, up to one quart per minute, and filters particulate down to 10 micron. The Oil Coalescing Filter removes oil aerosols down to .001 ppm and particulates down to .01 micron. The Activated Carbon filter removes oil vapor down to .003, and any taste or odor. The Regulator allows pressure control to ensure down stream components do not exceed their maximum operating pressures.

  • Removes water - up to one quart/minute
  • Filters particulate down to .01 micron
  • Removes oil aerosols down to .001 ppm
  • Oversized tube length allows both gravity and velocity to assist in the removal of water and air contaminates
  • Removable bottom cap provides ease of service
  • Machined drain port allows for various drain capabilities
  • Regulator provides optimal air pressure

3 Size Options:

MAX CFM ITEM # PORT SIZE (NPT) DRAIN MAX PSI MAX °F WEIGHT (LBS) DIMENSIONS (IN)
20
J-0678
¼"
FLOAT
250
122
5
10½ X 10½ X 3½
50
J-0257

½"

FLOAT
250
122
15½
18½ X 17 X 4½
120 J-0258 1"  FLOAT 250 122 25 21 X 18 X 6 ½



Typical applications: Laser Cutters, Automotive Painting, Inspection Rooms, Precision Equipment, Air Bearings, Medical, and more.
