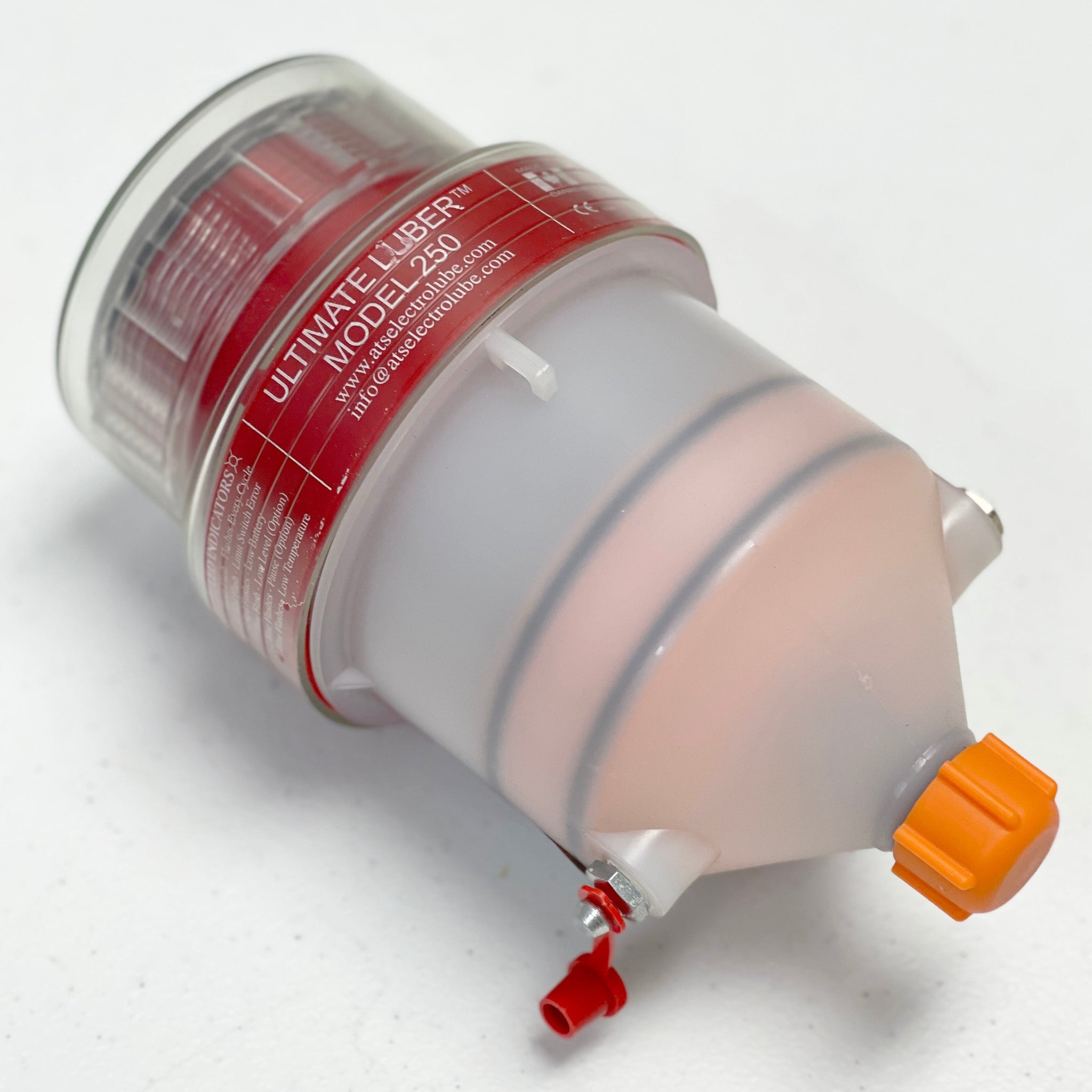

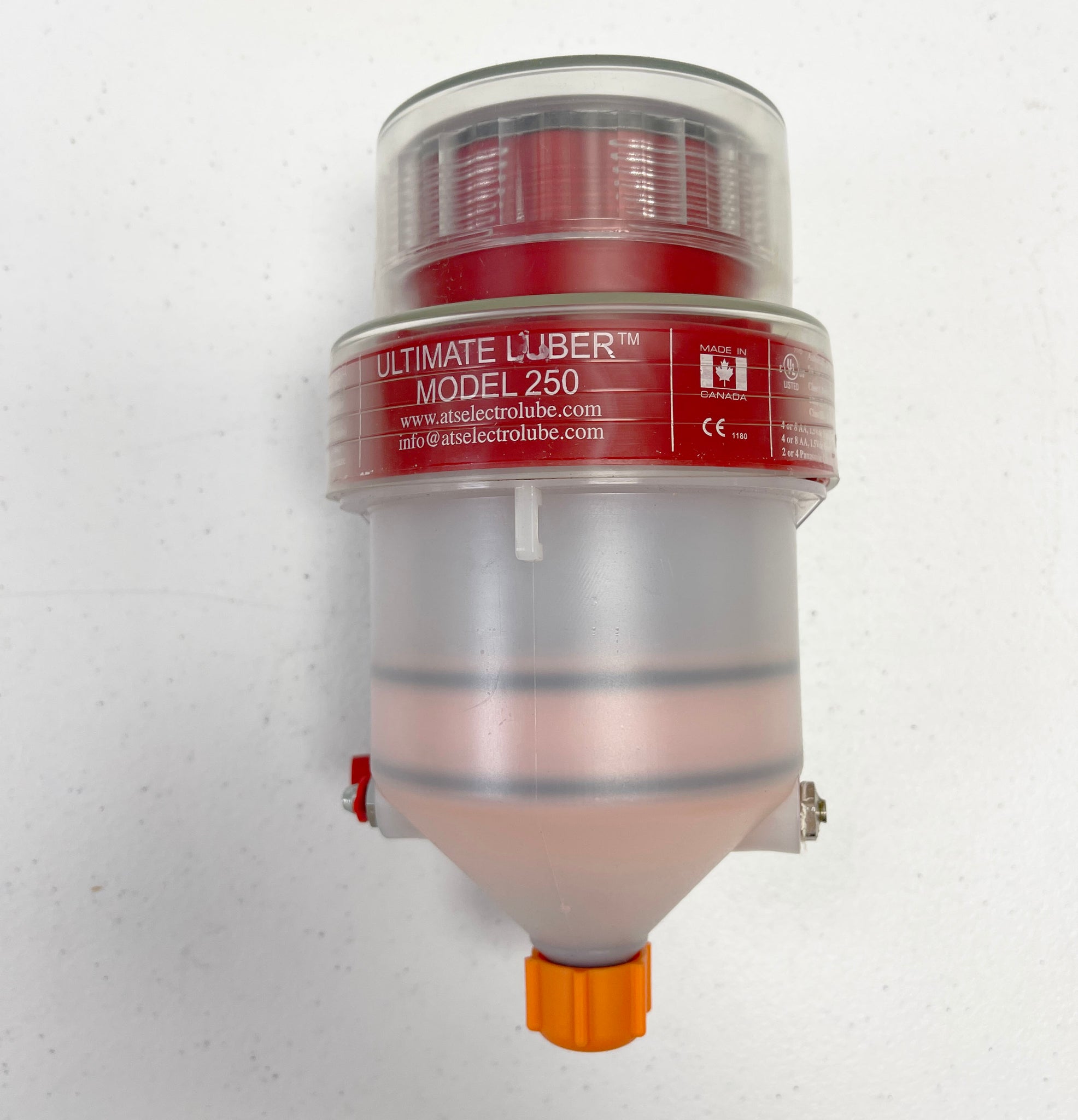

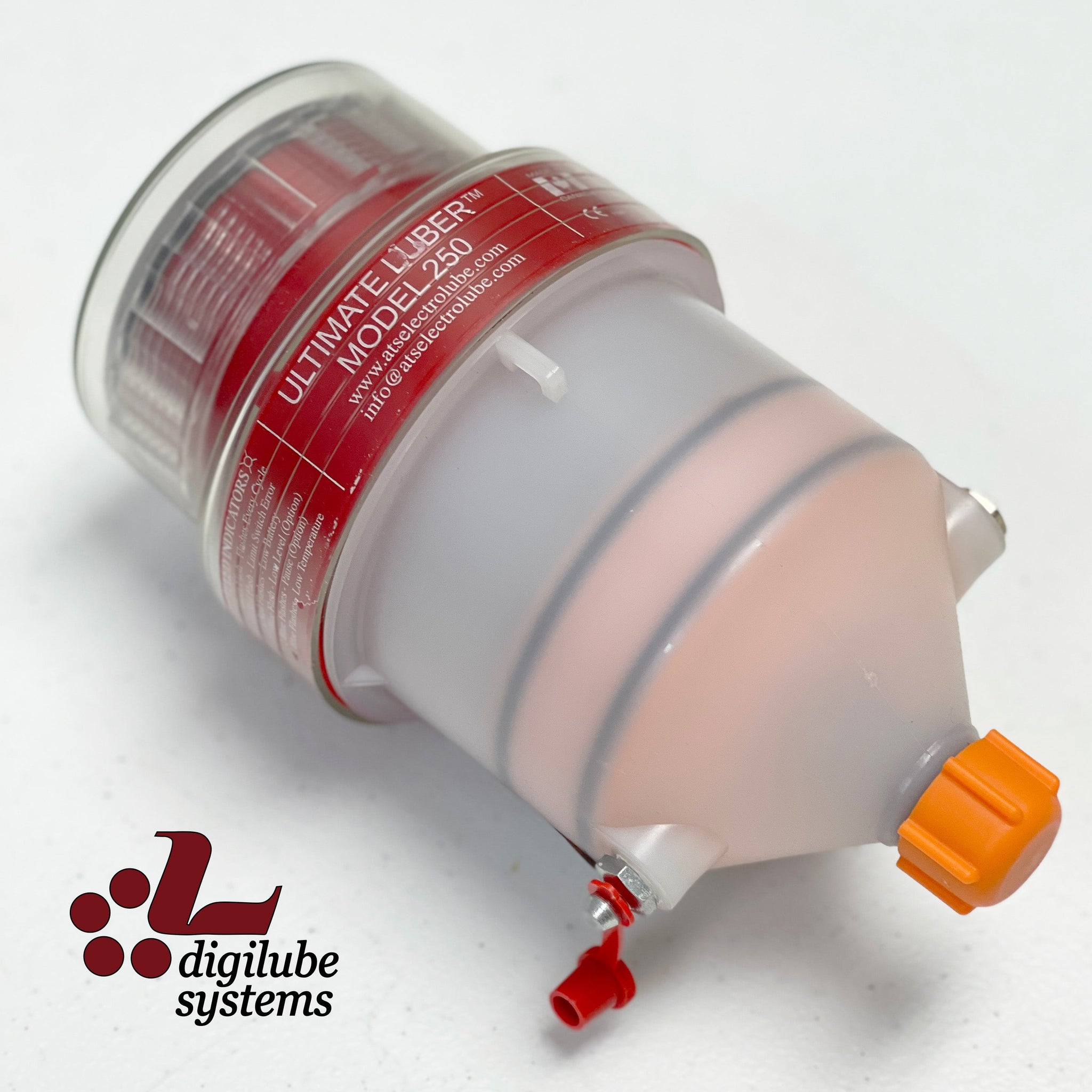

The Ultimate Luber™ is a powerful, motor-driven automatic lubrication which is refillable using standard grease guns. It’s microprocessor-controlled, energy-efficient motor delivers grease to a fixed-displacement pump that produces pressures over 1000psi.
This strength allows the Ultimate Luber™ to drive lubricant through long feed lines and to cycle progressive distributors to feed several bearings consecutively. When a dispensing cycle is selected, the units will activate at programmed internals. At each interval, the Ultimate Luber™ dispenses approximately 1.25cc of grease.
* Lead Time is 7-10 business days. Customer Service will contact you if lead time is extended
* If your grease is not listed, email customerservice@digilube.com
Application | Single & Multi-Point (up to 12 points) |
Size | 8oz | 7-1/2" high X 4" dia. |
Weight | 2.5 lbs |
Dispensing Power | Over 1,000psi - Single Point can be remote mounted up to 35 ft. Multi-Point can be remote mounted up to 20ft using 1/4" ID hose. Distribution Blocks available. |
Power Source |
Alkaline Battery Pack or Remote AC/DC Power. Optional Lithium Battery Pack - 4 or 8 cells |
Cycle | Refillable with Standard Grease Gun or Pump |
Lube Choice | Customer Fill / Refill as Needed |
Operating Span | 15 Days to 2 Years - Optional custom programming available. |
LED Indicator | Tri-color LEDs to indicate normal operation, low battery, low temp |
Weatherproof | Suitable for outdoor use in temps ranging from -40ºF to 131ºF (-40ºC to 55ºC) Weather Cap included + must be used. |
Dispensing Rate | Standard Timed intervals or custom programmable available |
