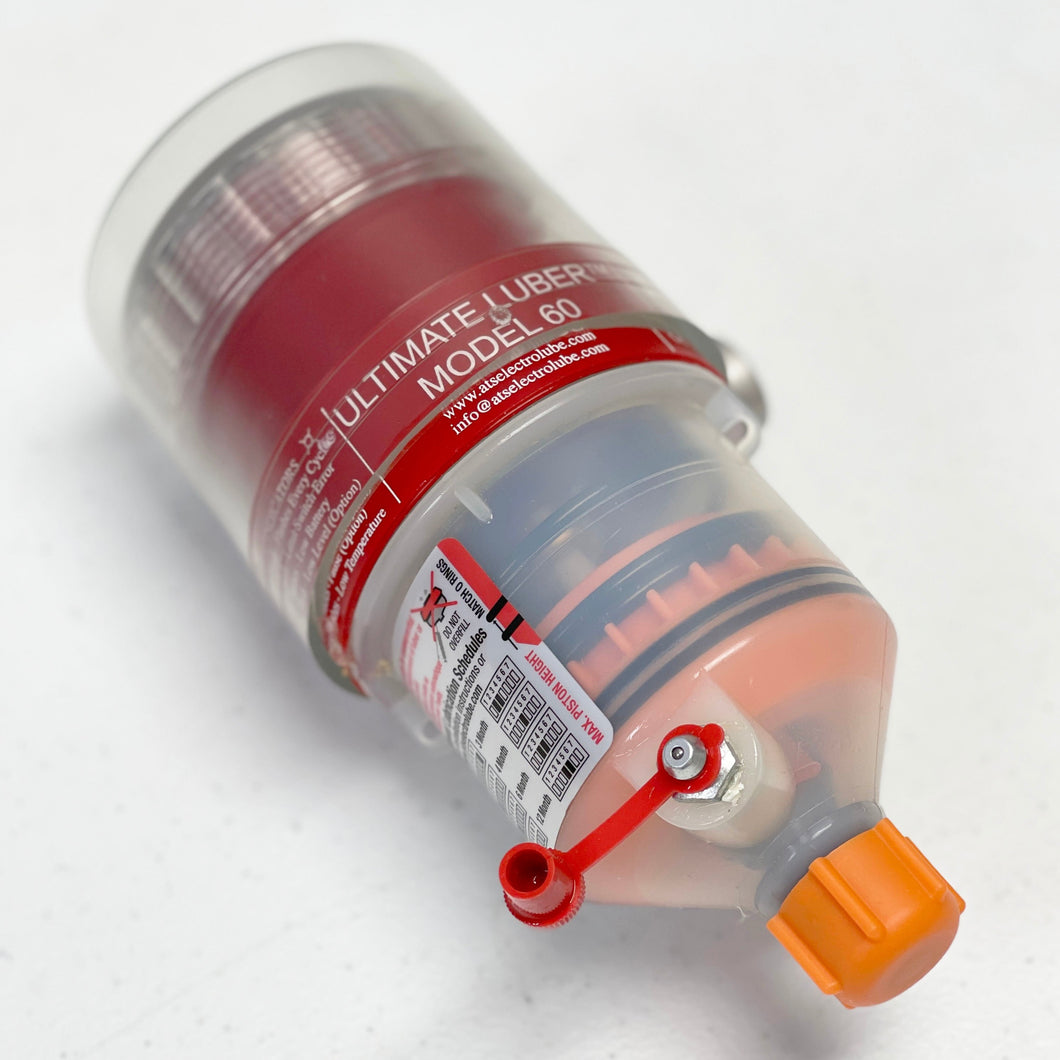

The Ultimate Luber™ is a powerful, motor-driven automatic lubrication which is refillable using standard grease guns. It’s microprocessor-controlled, energy-efficient motor delivers grease to a fixed-displacement pump that produces pressures over 1000psi.
This strength allows the Ultimate Luber™ to drive lubricant through long feed lines and to cycle progressive distributors to feed several bearings consecutively. When a dispensing cycle is selected, the units will activate at programmed internals. At each interval, the Ultimate Luber™ dispenses approximately 1.25cc of grease.
* Lead Time is 7-10 business days. Customer Service will contact you if lead time is extended
* If your grease is not listed, email firstname.lastname@example.org
|Application||Single & Multi-Point (up to 12 points)
|Size||4oz | 7-1/4" high X 3-1/2" dia.|
|Dispensing Power||Over 1,000psi - Single Point can be remote mounted up to 35 ft. Multi-Point can be remote mounted up to 20ft using 1/4" ID hose. Distribution Blocks available.
Alkaline Battery Pack or Remote AC/DC Power.
Optional Lithium Battery Pack - 4 or 8 cells
|Cycle||Refillable with Standard Grease Gun or Pump|
|Lube Choice||Customer Fill / Refill as Needed|
|Operating Span||15 Days to 2 Years - Optional custom programming available.|
|LED Indicator||Tri-color LEDs to indicate normal operation, low battery, low temp|
|Weatherproof||Suitable for outdoor use in temps ranging from -40ºF to 131ºF (-40ºC to 55ºC) Weather Cap included + must be used.
|Dispensing Rate||Standard Timed intervals or custom programmable available
