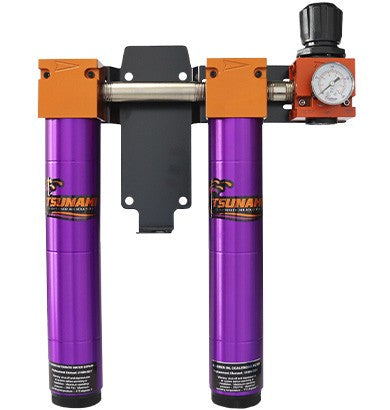

Filtration package #4 includes: (1) Water separator, (1) Oil coalescing filter, (1) Regulator and a mounting bracket. (2-stage w/ regulator)
Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Tsunami Water Separator removes water, up to one quart per minute, and filters particulate down to 10 micron. The Oil Coalescing Filter removes oil aerosols down to .001 ppm and particulates down to .01 micron. The Regulator allows pressure control to ensure down stream components do not exceed thier maximum operting pressures.
- Removes water - up to one quart/minute
- Filters particulate down to .01 micron
- Removes oil aerosols down to .001 ppm
- Oversized tube length allows both gravity and velocity to assist in the removal of water and air contaminates
- Removable bottom cap provides ease of service
- Machined drain port allows for various drain capabilities
- Regulator provides optimal air pressure
3 Size Options:
|
MAX CFM |
ITEM # |
PORT SIZE (NPT) |
DRAIN |
MAX PSI |
MAX °F |
WEIGHT (LBS) |
DIMENSIONS (IN) |
|
20 |
J-0677 |
¼" |
FLOAT |
250 |
122 |
3½ |
10½ X 6½ X 3½ |
|
50 |
J-0253 |
½" |
FLOAT |
250 |
122 |
12 |
17 X 13 X 4½ |
|
120 |
J-0254 |
1" |
FLOAT |
250 |
122 |
18 |
21 X 13 X 6½ |
Typical applications: Industrial Painting, Plasma Cutting, Nitrogen Generators, Critical Automation, and more.
