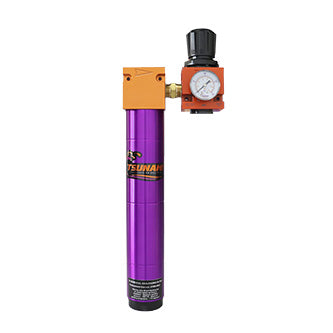

Filtration package #7 includes: (1) Oil coalescing filter, (1) Regulator and a mounting bracket.

Tsunami filters are machined from the highest quality materials and are anodized inside and out to ensure ultimate durability against corrosion and trapped contaminates. The Oil Coalescing Filter removes oil aerosols down to .001 ppm and particulates down to .01 micron. The Regulator allows pressure control to ensure down stream components do not exceed thier maximum operting pressures.

  • Removes oil aerosols - down to .001 ppm
  • Filters particulate down to .01 micron
  • Oversized tube length allows both gravity and velocity to assist in the removal of water and air contaminates
  • Removable bottom cap provides ease of service
  • Machined drain port allows for various drain capabilities
  • Regulator provides optimal air pressure

    3 Size Options:

    MAX CFM ITEM # PORT SIZE (NPT) DRAIN MAX PSI MAX °F WEIGHT (LBS) DIMENSIONS (IN)
    20
    J-0969
    ¼"
    FLOAT
    250
    175
    4
    9½ X 8 X 2½
    50
    J-0494

    ½"

    FLOAT
    250
    175
    13½
    17 X 13 X 3½
    120
    J-0967
    1"
    FLOAT
    250
    175
    21
    21 X 13 X 6½
