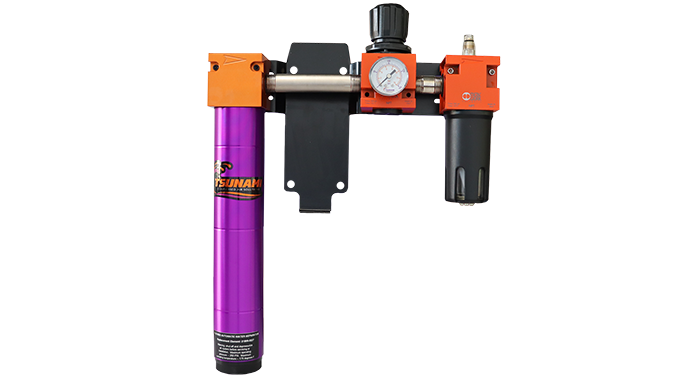

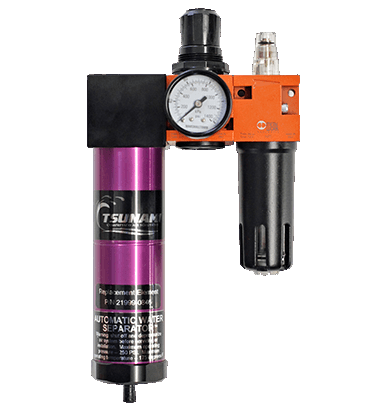

Filtration Package #2 includes: (1) Water separator, (1) Regulator, (1) Lubricator, and a mounting bracket.
Installing a FRL in a pneumatic system provides optimal performance and longevity for the components downstream. This package is designed to remove liquids and contaminants from the air, prevent over pressurization, and release a controlled mist of oil to reduce friction in the tool or piece of equipment. It is important to know your systems requirements before purchasing a FRL.
3 Size Options:
|Max CFM||Part #||Port Size||Drain||Max PSI||Max ºF||Weight||Dimensions|
|20||J-0415||1/4"||Float||250||175º||3 lbs||10½ X 6 X 3½|
|50||J-0249||1/2"||Float||250||175º||10½ lbs||18 X 13 X 6½|
|120||J-0250||1"||Float||250||175º||16 lbs||21 X 13 X 6½|
Typical applications: Air Tools, Tire Changers, Automotive Lifts, Robotics, Machine Tools, and more!
